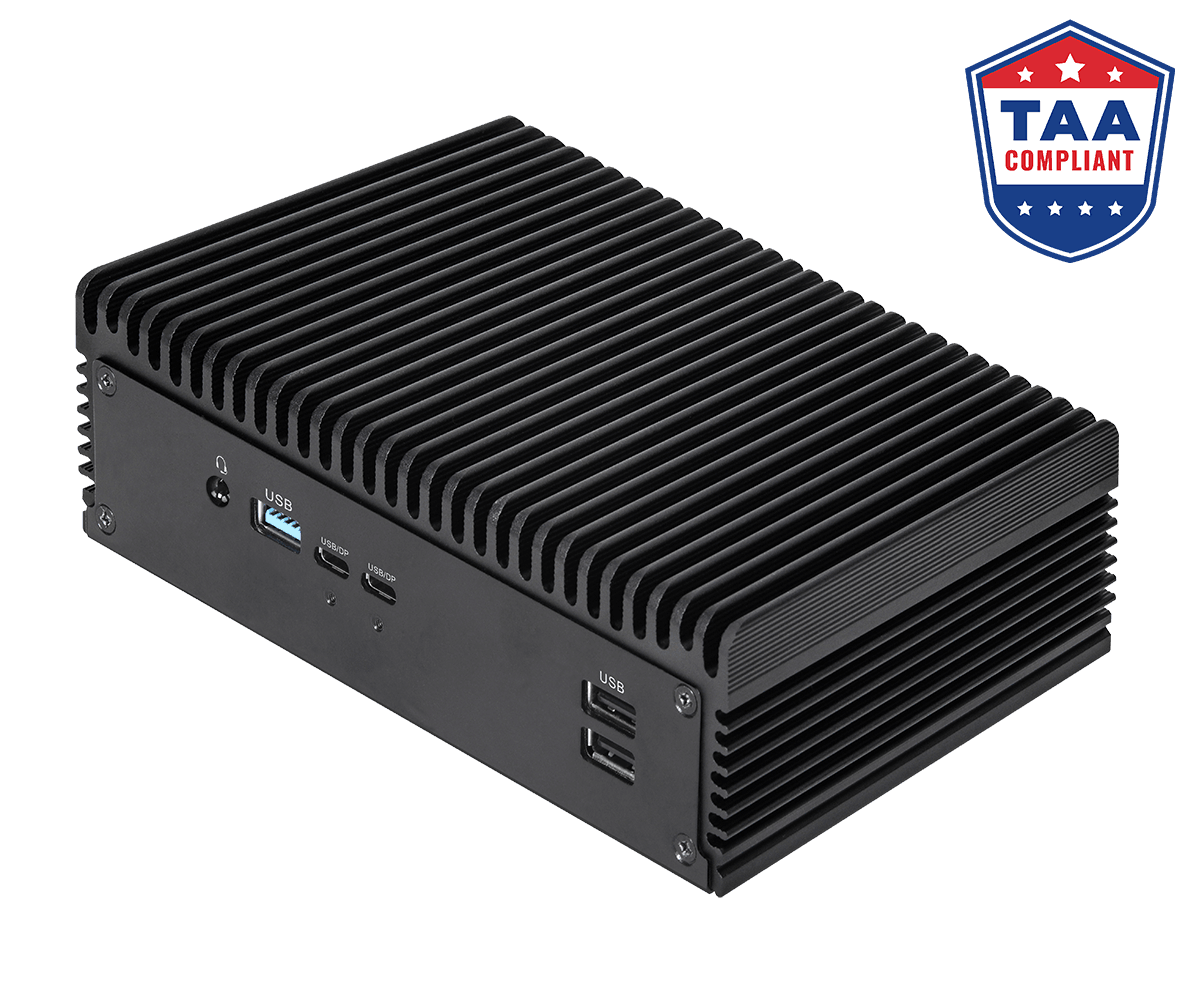

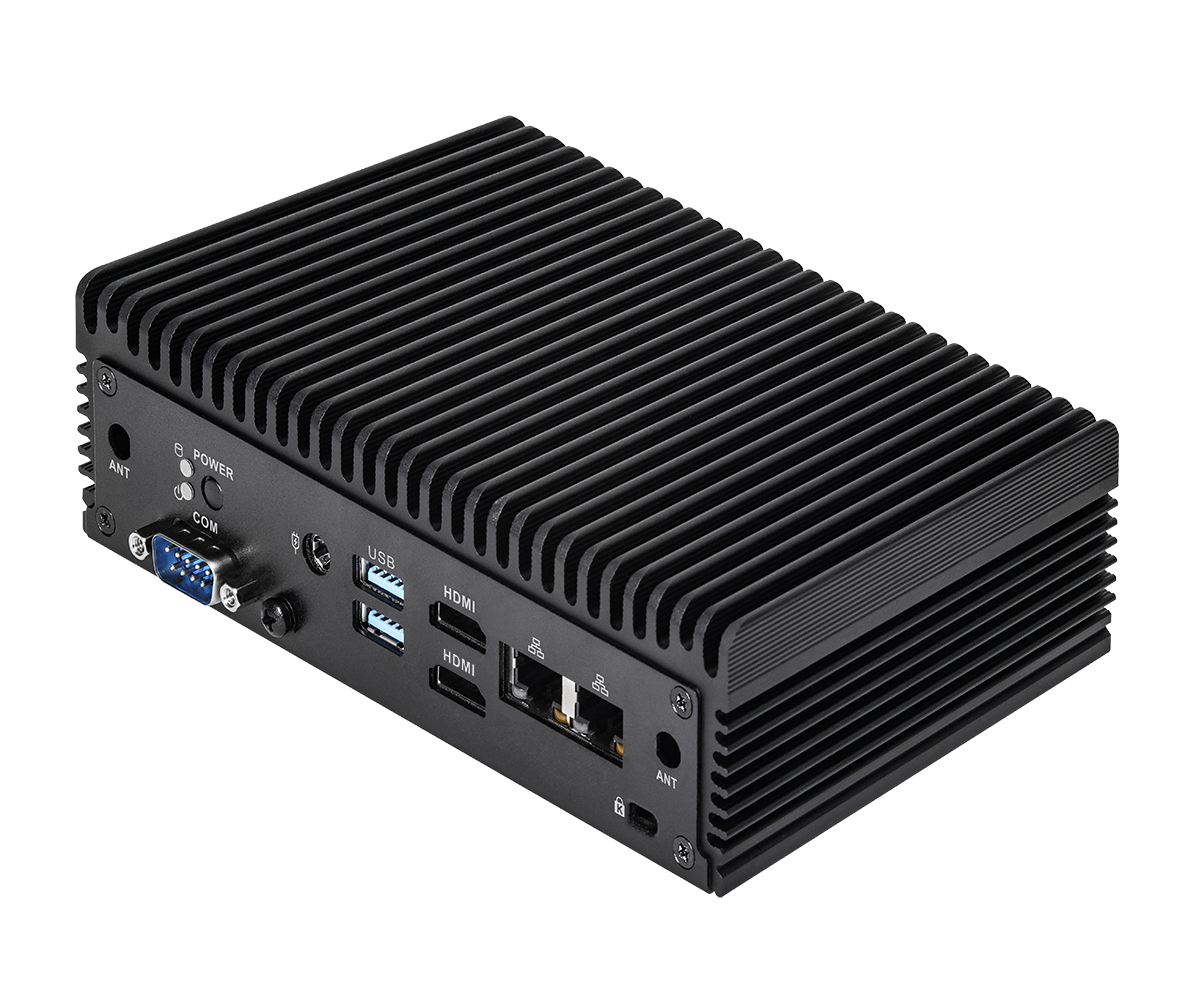

ASROCK: iBOX Ultra 100 Series: iBOX-155U/ iBOX-125U Fanless Embedded BOX PC

‧Intel® Core™ Ultra processors (Meteor Lake-U)

‧2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)

‧1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3 ‧2 x Intel 2.5 Gigabit LAN

‧Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)

‧Intel PTT ‧Supports Intel® vPro, VMD RAID 0/1

‧19V/90W Power Adapter

‧171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC Fanless

 Embedded BOX PC iBOX Ultra 100 Series

 SPECIFICATIONS KEY FEATURES

Environment Operating Temp Storage Temp Operating Humidity Storage Humidity -20ºC ~ 50ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) -40° C – 85° C 5% ~ 90% 5% ~ 90%

Mechanical Construction Mounting Dimensions (L x W x H) Weight Aluminum housing VESA mount/Wall mount/Din-rail 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")

Net Weight:1.6Kg Audio Interface Realtek ALC256, High Definition Audio. Watchdog Timer Output Interval From Super I/O to drag RESETCON# 256 Segments, 0, 1, 2, ...255sec

Ethernet Controller/ Speed Connector LAN1: Intel I 226L,M with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I 226V with 10/100/1000/2500 Mbps 2 x RJ-45 Expansion Slot M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless Storage M.2 SATA RAID 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M 1 x SATA3.0 (6.0 Gb/s) Power Requirements Input PWR Power On 12V~24V DC-In Jack AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

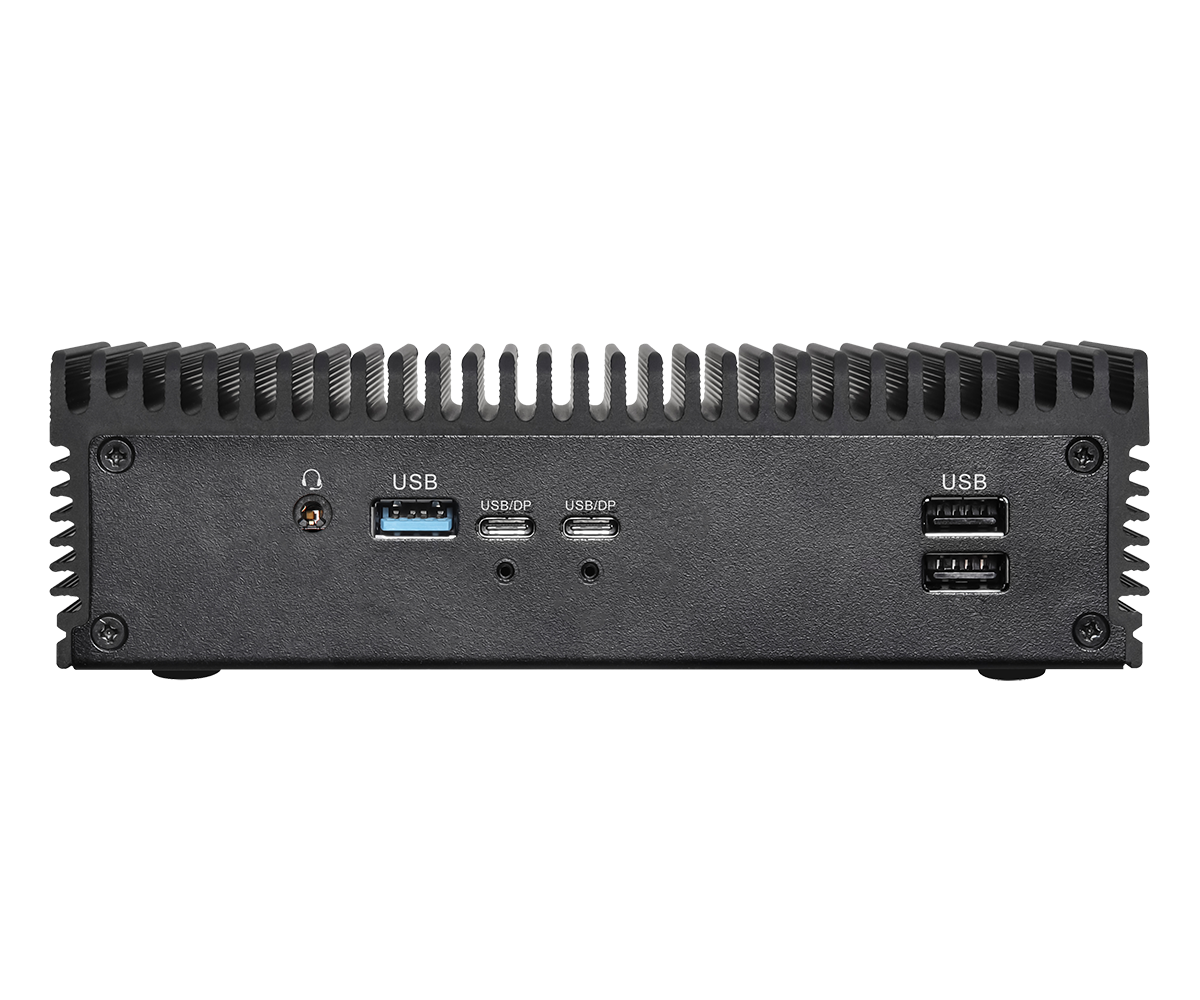

Front I/O USB Audio 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list. 1 (headphone & microphone jack)

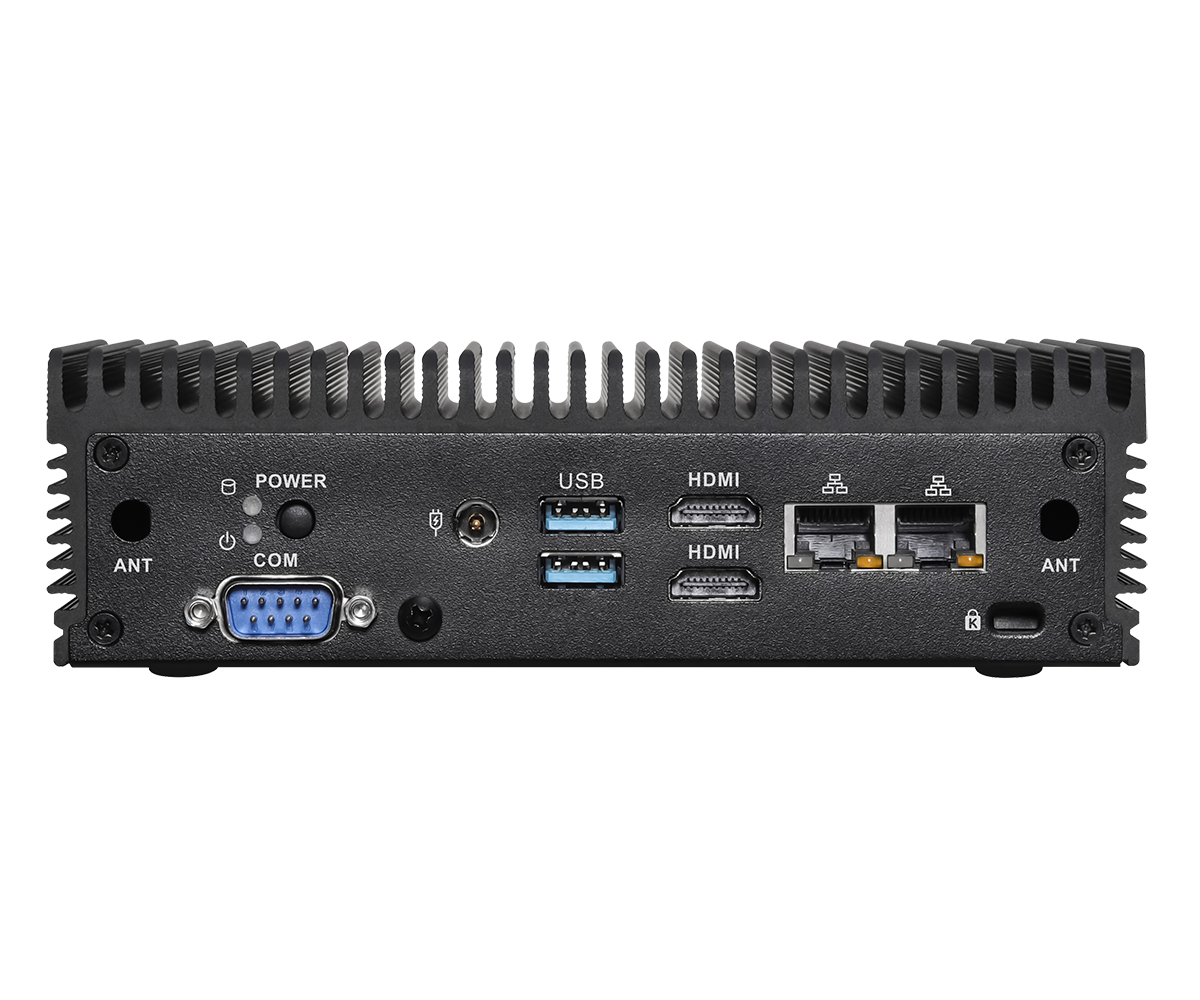

 Rear I/O HDMI Ethernet USB DC Jack COM 2 x HDMI 2.1 TMDS 2 x 2.5 Gigabit LAN 2 x USB 3.2 Gen2 (Type-A) 1 1 x COM(RS-232/422/485) Others OS Support TPM Certifications Packing List Windows 10/11 Intel® PTT CE, FCC 1 x 19V/90W Power Adapter 1 x Wall mount kit Memory Technology Capacity Socket Dual Channel DDR5 5600 MHz 96GB (48GB per DIMM) 2 x 262-pin SO-DIMM Graphics Controller HDMI DisplayPort

MultiDisplay Intel® Graphics HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz Quad-Display
