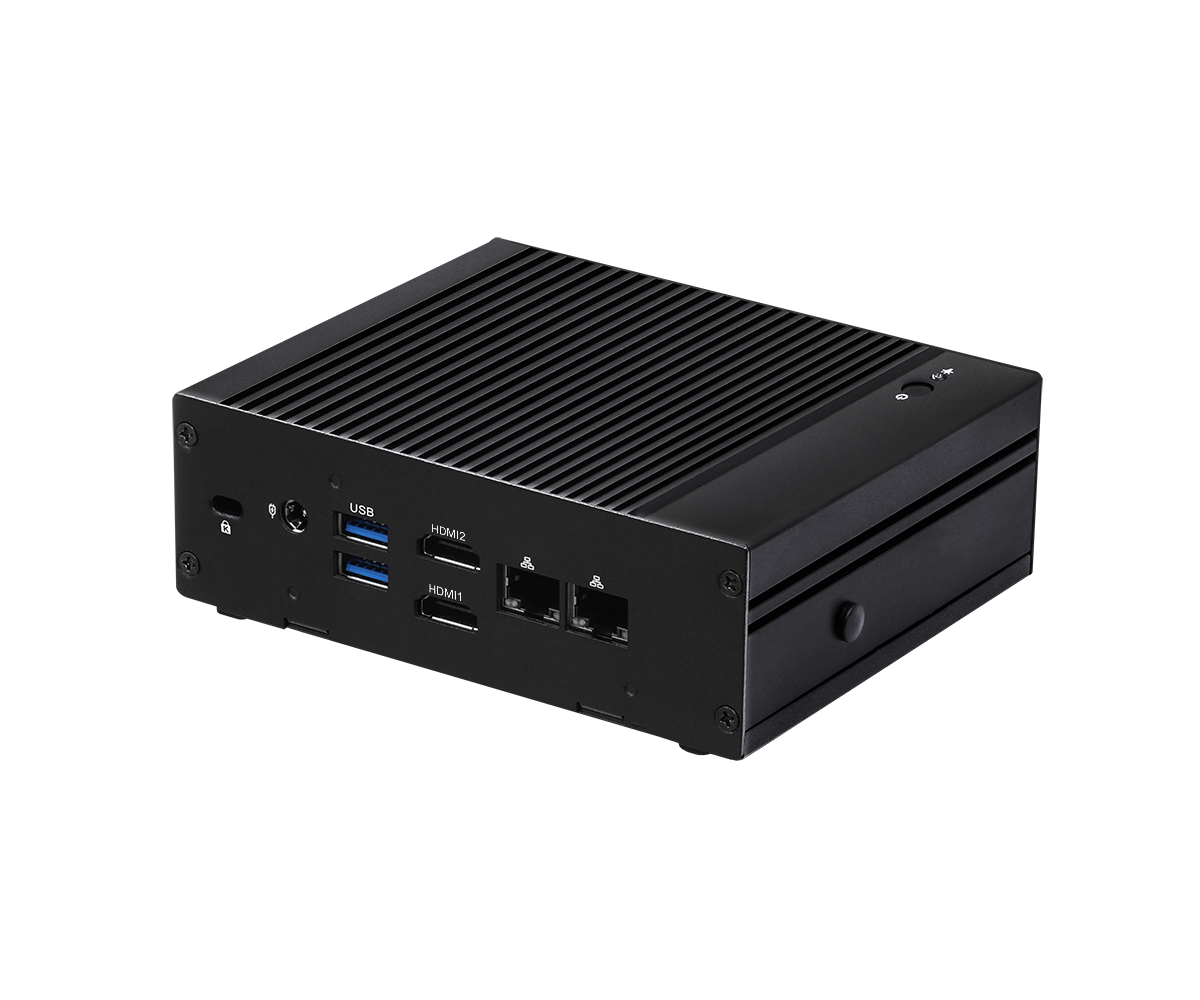

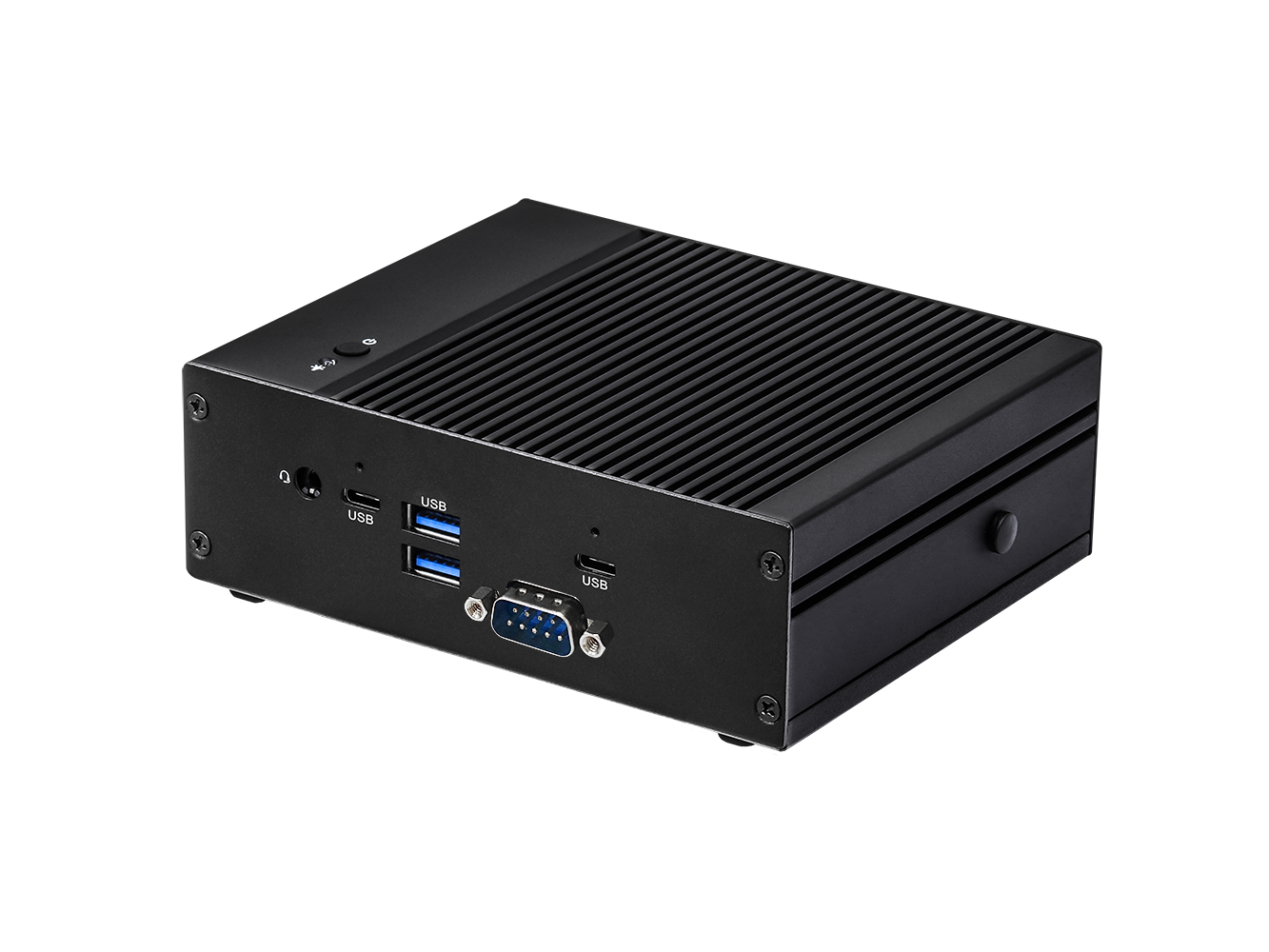

ASROCK:iBOX-N97 R2/D5 Fanless Embedded BOX PC

FEATURES:

‧Intel® Alder Lake-N SoC Processor N97

‧1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB

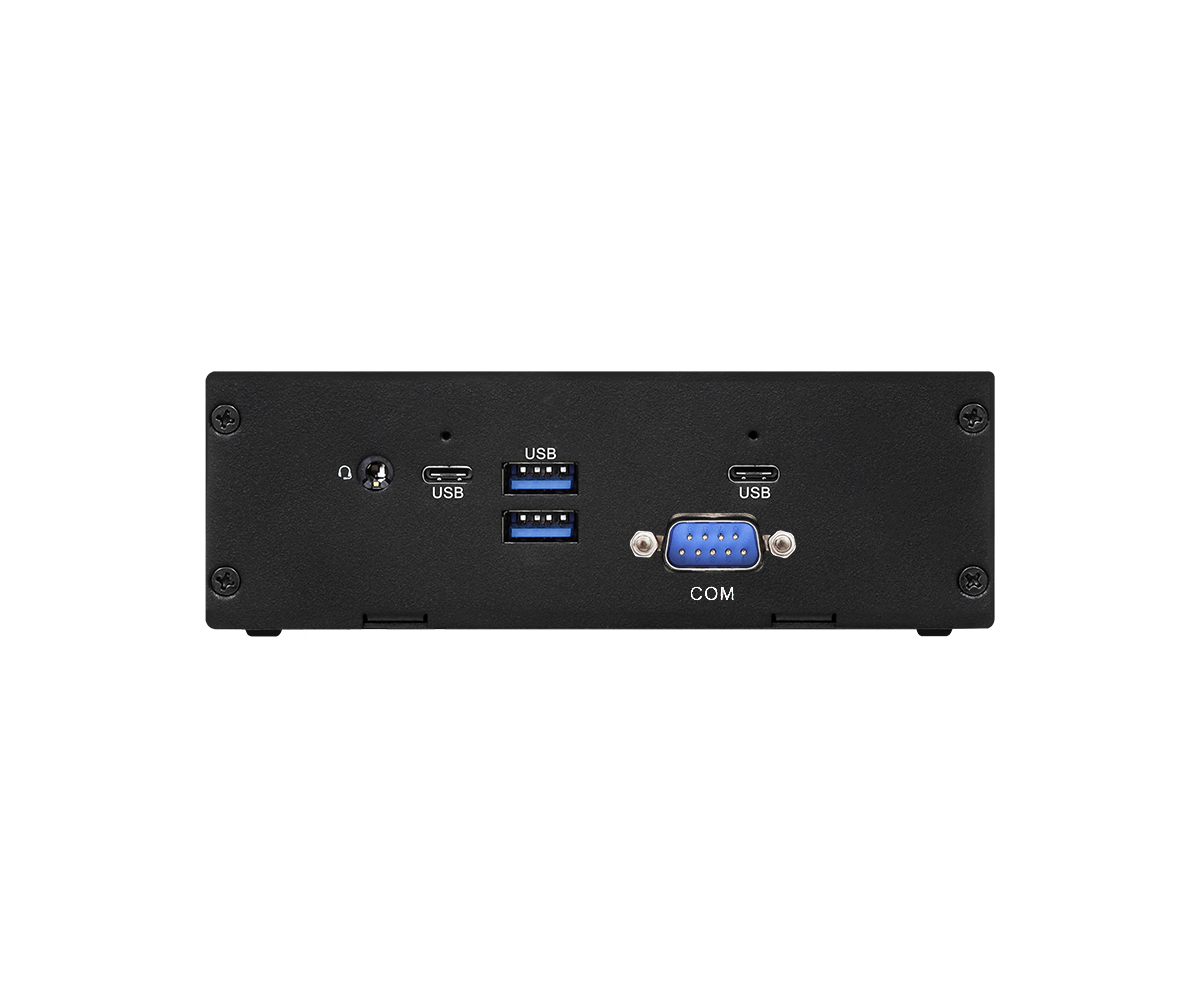

‧6 x USB 3.2 Gen2, 1 x M.2 Key E, 1 x M.2 Key M, 1 x COM, 1 x SATA3

‧2 x Realtek 2.5 Gigabit LAN

‧Supports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (From Type-C)

‧TPM 2.0 onboard IC

‧19V/65W Power Adapter

‧135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC

SPECIFICATIONS KEY FEATURES

Environment Operating Temp Storage Temp Operating Humidity Storage Humidity -20ºC ~ 50ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) -40° C ~ 85° C 5% ~ 90% 5% ~ 90%

Audio Interface Realtek ALC256, High Definition Audio Watchdog Timer Output Interval From Super I/O to drag RESETCON# 256 Segments, 0, 1, 2, ...255sec Ethernet Controller/ Speed Connector

LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps 2 x RJ-45 Expansion Slot M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless Storage M.2 SATA 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD *M.2 Key M 2280 (Supported by bracket) 1 x SATA3.0 (6.0 Gb/s)

Power Requirements Input PWR Power On 9V~24V DC-In Jack AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

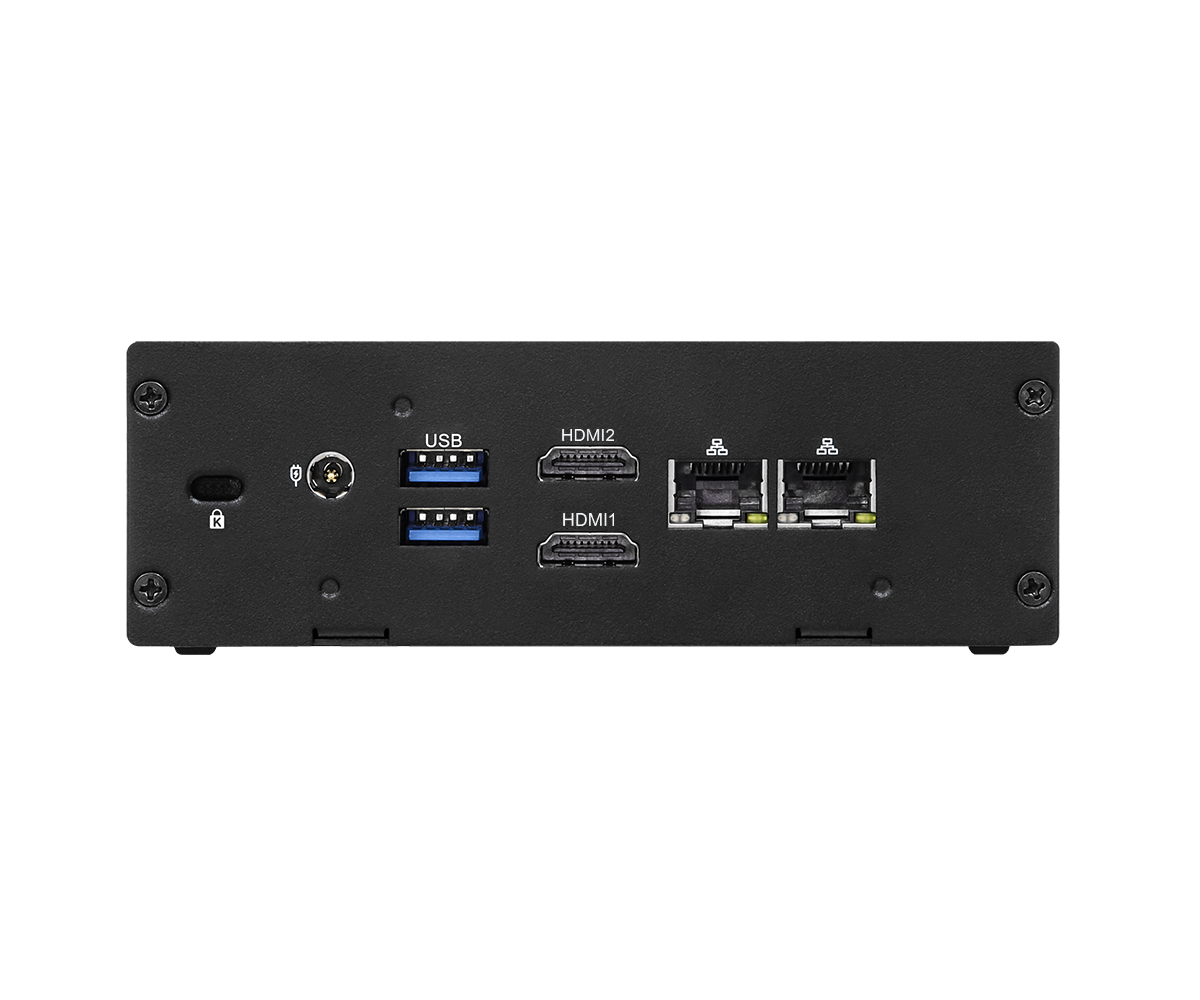

Rear I/O HDMI Ethernet USB DC Jack 2 x HDMI 2.0b 2 x 2.5 Gigabit LAN 2 x USB 3.2 Gen2 (Type-A) 1 Others OS Support TPM Certifications Packing List Windows 10/11 TPM 2.0 onboard IC CE, FCC 1 x 19V/65W Power Adapter

1 x Wall mount kit Graphics Controller HDMI DisplayPort MultiDisplay Intel® UHD Graphics HDMI 2.0b Max resolution up to 4096x2160@60Hz DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz Triple Display (Included 2 outputs from Type-C)

Mechanical Construction Mounting Dimensions (L x W x H) Weight Aluminum housing VESA mount/Wall mount/Din-rail 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75") Net Weight: 0.7kg Memory Technology Capacity Socket Single Channel DDR5 4800 MHz 32GB 1 x 262-pin SO-DIMM Processor System CPU Chipset BIOS Intel® Alder Lake-N SoC Processors iBOX-N97 R2/D5 (N97, QC, Max Speed Up to 3.6GHz, 12W) SoC AMI SPI 256 Mbit
